November 15, 2022 at 7:38 pm | Updated November 17, 2022 at 6:00 pm | 5 min read
In every development stage, plants produce ethylene, which can be beneficial and harmful.
- The ripening effect is by far the most economically crucial effect of the gas, followed by abscissing effects.
- Lesser known ethylene effects that need to be controlled in the supply chain are sprouting and pathogen detection.
Ethylene is a phytohormone produced by plants in all phases of their lifecycle and involved in many physiological processes. Monitoring the gas levels in the supply chain can reduce agriculture yield loss. Find the critical points in the supply chain where monitoring ethylene can help your business.
Subscribe to the Felix instruments Weekly article series.

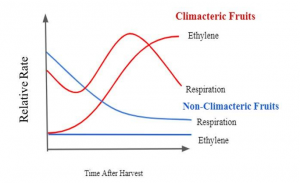

Figure 1: Fruit ripening patterns of climacteric versus non-climacteric fruits, UC Davis. (Image credits: https://extension.umd.edu/resource/ethylene-and-regulation-fruit-ripening).
Ethylene (C2H4) is an odorless and colorless gas that diffuses within plants and between fresh produce. Its effect on ripening is its most important property in the supply chain.
Climacteric fruits, like apples, mangoes, avocados, bananas, tomatoes, etc., require ethylene for ripening. This process starts with an increase in respiration rate and an initial release of ethylene, which triggers more ethylene, as it is autocatalytic, see Figure 1. Ethylene softens fruit tissue by dissolving pectin, induces color change, and converts starches into sugars. The process starts while the fruits are on the tree and continue after harvest.
Ethylene is monitored on the farms and in the postharvest stages. Food producers aim to keep their fresh produce at lower temperatures during storage to slow down respiration and ethylene production. Any ethylene detected is removed by scrubbing, reducing concentrations. Once ethylene is produced, it leads to ripening, over-ripening, and the decay of fruits and vegetables, making them unmarketable as well as lowering profits.
A few days before selling, suppliers will provide artificially manufactured ethylene in prescribed concentrations and temperatures in ripening rooms to produce ripe fruits for retail.
Non-climacteric fruits do not need ethylene for ripening, for example, grapes, strawberries, and cherries. However, many are ethylene-sensitive, as the hormone causes decay and senescence. These ethylene-sensitive fruits, for example, cauliflower, carrots, beans, eggplants, onions, watermelon, etc., should not be stored near climacteric fruits to prevent spoilage.
Ethylene is also the stress hormone, and a plant or fruit will release gas in response to abiotic stress, like wounding, hypoxia, and chilling. In all cells, Ethylene is present in small quantities, but its levels increase in stressed cells and tissue.
So when fruits and vegetables are bruised during handling and transport, or suffer chilling injury or lack of oxygen in cold storage rooms, ethylene levels increase in stressed tissues.
Ethylene signaling starts a programmed cell death in the damaged cells and tissues, beginning decay. This will again lead to fruit rejection and waste. So regular monitoring of ethylene levels with non-destructive gas analysis devices can help stakeholders identify spoiled fruits before visual symptoms become apparent. These can be sorted and culled to prevent ethylene from spreading to other fruits and triggering premature ripening.
- Detecting Fungal and Insect Attacks
Plants suffering biotic stress from pathogens will also respond by triggering ethylene release in the affected tissue. The hormone is the principal modulator of plants’ various mechanisms to react to pathogen attacks. These actions include controlling the genes and synthesizing other hormones like salicylic acid and jasmonate. This produces a differentiated response to diseases.
The presence of pathogens preharvest, bruising and damage to the external skin during transport, or improper storage conditions can spread fungi and other diseases during the supply chain.
Traditional fresh produce was examined physically or by a destructive laboratory microscopic examination for pathogens or pests. Since ethylene production is established with diseases and pest attacks, stakeholders can monitor non-destructively ethylene levels to identify biotic stress before it spreads to the entire batch and spoils profits.
- Abscission of Flowers and Leaves
Figure 2: Cut flowers will wilt due to trace levels of ethylene. (Image credits: https://www.express.co.uk/life-style/property/1571233/how-to-make-cut-flowers-last-longer-hacks-evg)
Ethylene causes aging and then senescence, allowing plants to discard old leaves, flowers, petals, and ripe fruits through abscission and is also of commercial interest.
In fact, ethylene was first discovered in the 19th century because the gas released from street and greenhouse lamps led to premature leaf-fall.
The cut flower industry is interested in controlling ethylene production, which can cause yellowing leaves and the abscission of flowers brought on by ethylene signaling. Like fruits, many flowers are ethylene sensitive, and even trace amounts of the gas lead to rapid wilting, see Figure 2. Ethylene can be produced by everyday items like electric generators or gas cylinders in storage facilities or retailers that can affect flower vase life.
Ethylene is found at higher levels in meristem tissue and is responsible for germination and root initiation, resulting in the sprouting of potato tubers. Potatoes are the fourth major food crop and are stored in large quantities, in bins or stacked cribs.
Potatoes are stored under low temperatures and ventilation to extend storage time and reduce sprouting by reducing ethylene levels. When ventilation levels are low, the ethylene concentrations in bins can increase, and there will be more sprouting, which leads to a weight loss of tubers.
Monitoring ethylene and respiration can effectively control sprouting and quality loss in potatoes that will be stored for months.
Reduce Storage Energy Costs
There are several portables and fixed devices available on the market that can help in monitoring ethylene levels of various concentrations:
- The fixed F-901 AccuStore & AccuRipe for monitoring and controlling storage and ripening rooms
- The F-920 Check It! Gas Analyzer for the entire supply chain and greenhouse
- The F-940 Store It! Gas Analyzer storage facilities and retailers
- The F-950 Three Gas Analyzer for greenhouses and the whole supply chain
- The F-960 Ripen It! Gas Analyzer for the ripening rooms
These tools can help monitor ethylene levels and ensure that ethylene-sensitive vegetables, fruits, and flowers are kept in rooms with deficient ethylene concentrations. Usually, fruits and vegetables are transported and stored at zero degrees Celsius, which uses a lot of energy. Postharvest carbon emissions have increased by 50% during storage, and agriculture accounts for one-third of the global emissions. By reducing ethylene, suppliers can keep the food at higher temperatures and reduce the energy spent on cooling. They would lower carbon emissions to make agriculture more sustainable.
Broekaert, W. F., Delauré, S. L., De Bolle, M. F. C., & Cammue, B. P. A. (2006). The role of ethylene in host-pathogen interactions. Annual Review of Phytopathology, 44(1), 393–416. https://doi.org/10.1146/annurev.phyto.44.070505.143440
Capino, A., & Farcuh, M. (2021, July 22). Ethylene and the Regulation of Fruit Ripening. Retrieved from https://extension.umd.edu/resource/ethylene-and-regulation-fruit-ripening
Dartmouth University. (2007, September 13). How Plants Regulate Ripening And Decay. ScienceDaily, Retrieved from www.sciencedaily.com/releases/2007/09/070912135834.htm.
Ehrenberg, R. (2018, September 24). Science Reveals How Fruit Keeps A Lid On Ripening Until The Time Is Right. Retrieved from https://www.npr.org/sections/thesalt/2018/09/24/650585212/science-reveals-how-fruit-keeps-a-lid-on-ripening-until-the-time-is-right?t=1658507982647
Emragia, E., Sathuvalli, V., & Jayant, S.S. (2021). The impact of ventilation conditions on the quality of Rio Grande Russet tubers during long-term cold storage. Journal of Agriculture and Food Research, 3. https://doi.org/10.1016/j.jafr.2020.100095
FAO. (2021, June 8). Off-farm activities are a growing share of food-system greenhouse gas emissions. Retrieved from http://www.fao.org/news/story/en/item/1402118/icode/
Gilbert, N. (2012). One-third of our greenhouse gas emissions come from agriculture. Nature https://doi.org/10.1038/nature.2012.11708
Li, Y., Wills, R.B.H., & Golding, J.B. (2017) Interaction of ethylene concentration and storage temperature on postharvest life of the green vegetables pak choi, broccoli, mint, and green bean. The Journal of Horticultural Science and Biotechnology, 92:3, 288-293. DOI: 10.1080/14620316.2016.1263545
Lin, Z., Zhong, S., Grierson, D. (2009). Recent advances in ethylene research, Journal of Experimental Botany, 60 (12), 3311–3336. https://doi.org/10.1093/jxb/erp204
Trobacher, C. P. (2009). Ethylene and programmed cell death in plants. Botany, 87(8), 757–769. https://doi.org/10.1139/b09-041
