F-751 Mango Quality Meter

Rapid, non-destructive mango quality measurement.

Your best harvest yet.

Helping you make better harvest decisions with state-of-the-art near-infrared technology.

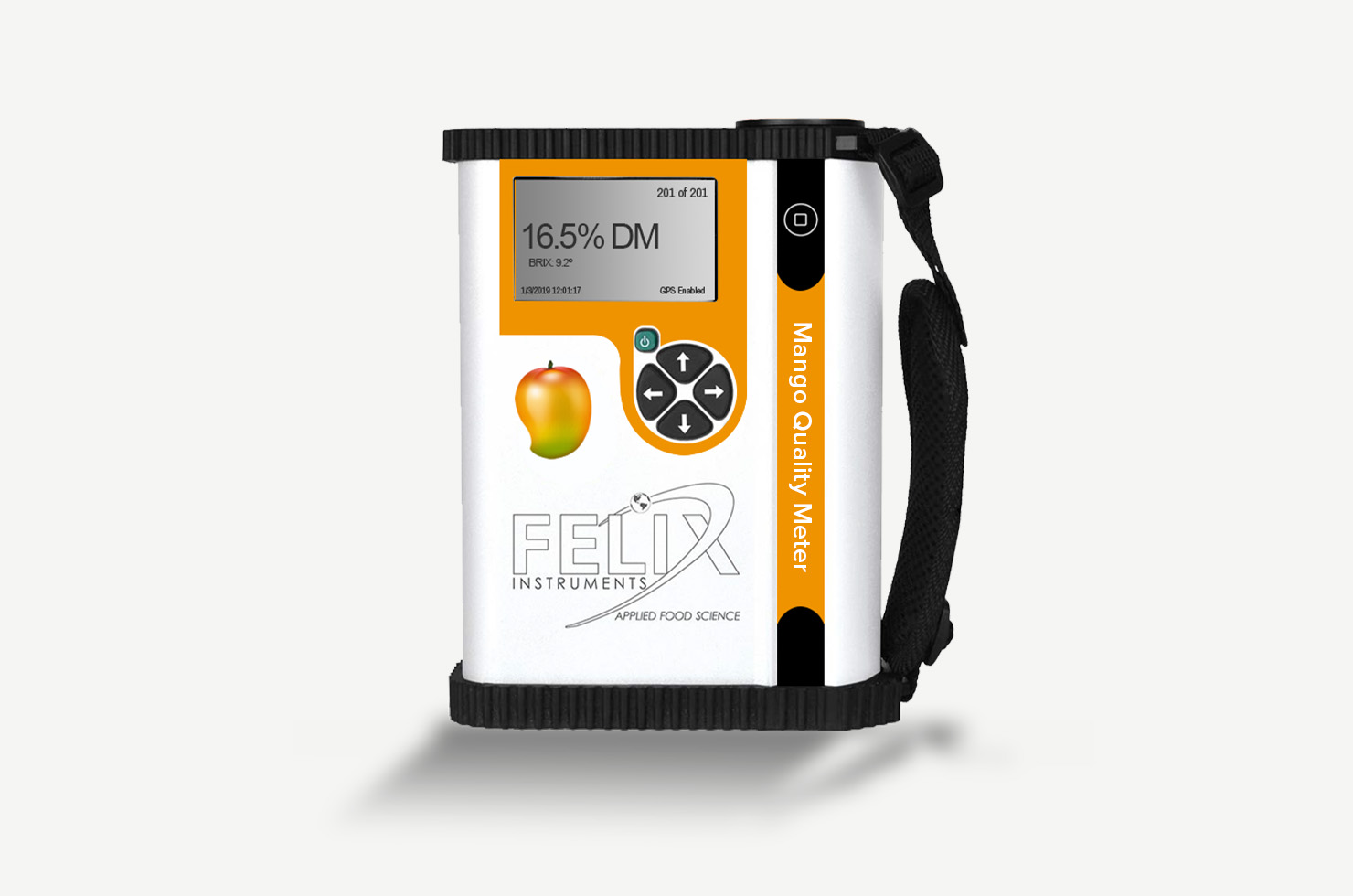

F-751 Mango Quality Meter

Powerful spectrometer

The Mango Quality Meter’s powerful 640-1050 nm spectrometer captures dry matter data with speed and precision.

Lightweight & portable

Ergonomic and lightweight design allows for easy data capture, whether on site or in the lab.

WIFI connectivity

Easy data transfer via WIFI and SD card for later analysis.

Scans in seconds

Collect actionable dry matter and °Brix data in just 8-12 seconds with the Mango Quality Meter’s performance-based design.

Anti-glare LCD screen

Designed with field use in mind, the Avocado Quality Meter’s transflective LCD screen is easily viewed in any lighting conditions.

F-751 Mango Quality Meter
1

Powerful spectrometer

The Mango Quality Meter’s powerful 640-1050 nm spectrometer captures dry matter data with speed and precision.

2

Lightweight & portable

Ergonomic and lightweight design allows for easy data capture, whether on site or in the lab.

3

WIFI connectivity

Easy data transfer via WIFI and SD card for later analysis.

4

Scans in seconds

Collect actionable dry matter and °Brix data in just 8-12 seconds with the Mango Quality Meter’s performance-based design.

5

Anti-glare LCD screen

Designed with field use in mind, the Avocado Quality Meter’s transflective LCD screen is easily viewed in any lighting conditions.

Request a live demonstration

Measure mango maturity in seconds

Lightweight & heavy duty

Individually machined in the USA, the Mango Quality Meter’s highly durable, aluminum construction gives you peace of mind without sacrificing weight.

Wide measurement range

Ensure accurate data, no matter the maturity stage with dry matter readings from 8-26% and Total Soluble Solids (TSS) readings from 4-25° Brix.

7 data points in one scan

Collect raw data, reflectance, absorbance, 1st derivative spectra, 2nd derivative spectra, GPS tag, and date & time in a single scan.

Integrated crop mapping

Harvest planning has never been easier with Felix Instruments’ exclusive harvest mapping software, FruitMaps.

User-friendly design

The Mango Quality Meter’s intuitive user interface is designed for easy adoption by technicians at all levels of training.

500+ Measurements

With over 500 measurements on a single charge and rechargeable 3400 mAh replacement batteries included, you’ll never be lacking in predictive power.

  • Does this product come with a warranty?

  • All devices from Felix Instruments – Applied Food Science come with a 12- month warranty at the point of sale. The warranty covers repairing and replacing defective parts of the instrument that were manufactured directly by Felix Instruments. The warranty does not cover wear and tear, neglect, misuse, accident, or excessive deterioration. Further, unauthorized repair and alteration by an unauthorized party voids the warranty. More information can be found in the operation manual of your instrument.

  • Is the Mango Quality Meter waterproof?

  • The Mango Quality Meter is not designed to be waterproof and should not be used underwater. The Mango Quality Meter is designed to be water-resistant. Use in light rain is fine, however, there are electronics inside of the Mango Quality Meter that can be damaged from water entering the instrument, so it is not recommended to use the Mango Quality Meter during heavy rainfall.

  • What are the operating conditions of this product?

  • The recommended operating temperature range for the Mango Quality Meter is 0 – 50° Celsius.

  • Do I need to build my own mango model?

  • No! The Mango Quality Meter is preloaded with a robust chemometric model and fully calibrated when it leaves out production facility.

  • What varieties were used to build the mango model?

  • The robust mango model included on the Mango Quality Meter was built using data from Tommy Atkins, Ataulfo (a.k.a. Champagne, Honey, or Adolfo), Kent, Calypso, and Keitt mangoes.

Have additional questions?

Click the link below to speak with one of our staff scientists about your specific application.

Click here to schedule a consultation

Specifications

Spectrometer: Hamamatsu C11708MA
Range: 640-1050 nm
Spectral Sample Size: 2.3 nm
Spectral Resolution: 20 nm (FWHM) maximum
Light Source: Halogen Tungsten Lamp with gold reflector
Lens: Fused silica coated to enhance NIR
Shutter: White painted reference standard
Display: Sunlight visible transflective LCD screen with backlight
Operating Conditions 0-50ºC, 0-90% non-condensing humidity
PC Interface: Wi-Fi
Data Recorded: Raw data, reflectance, absorbance, first derivative second derivative, GPS coordinates, Date, Time
Measurement: Dry matter & Brix
Power Source: Removable 3400 milliamp hour lithium-ion batteries
Battery Life: 500+ measurements
Body: Heavy-duty powder coated aluminum body
Dimensions: 7.1″ x 4.75″W, 1.75″ thick
Weight: 1.05 kg
